Urology 3D Colour Doppler Ultrasound Machine Scan 12in LCD 120GB

Brand Name : Xianfeng

Model Number : E20

Certification : ISO & CE

Place of Origin : MADE IN CHINA

MOQ : 3-5pcs

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100 Units Per Month

Delivery Time : 5-8 workdays

Packaging Details : Carton,490*460*250mm

Product Name : Color Doppler Ultrasound Machine

Monitor : 12 inches LCD

Built-in Capacity : 120GB

Transducer ports : Dual

Measures : OB,GYN,MSK

Optional : 3D software

Languages : 7 Languages in Programmed

Transducers : 2 Active Probe Transducers

Output : HDMI, VGA, Dicom, 2 USB, Line out

Imaging Mode : B,B/B,4b, B/M,Pw,Cfm, Pdi,B+Pdi,B+Cfm

Contact Now

Slim And Light Portable Color Doppler Ultrasound Machine

Oem Economical And Affordable Portable Color Doppler Ultrasound Machine

Urology 3D Colour Doppler Ultrasound Machine Scan 12in LCD 120GB

ODM E20 Economical Portable Color Doppler-You can afford !

E20 notebook has 12 inches LCD display,built-in 120GB capacity.

It’s slim,light and artistic with clear image and high resolution. Based on PC platform, windows 7 operating system,like a computer ,easy to operate !

It has dual probe sockets and multi interfaces,supports convex,linear,endocavitary,transrectal and micro convex transducer.USB port can connect to thermal printer,ink jet and laser printer.

It supports 7 languages and pre-installed 3D software in program. Human and Veterinary software optional .

Worthy to try it .

Urology 3D Colour Doppler Ultrasound Machine Scan 12in LCD 120GB

Standard features

B/CFM/PW triple synchronization
5 levels Image optimization
Digital beam-forming
Un View- speckle reduction
Tissue harmonic imaging
PW automatic envelope measurement
IMT (Carotid intima-media thickness)automatic envelope measurement
Biopsy guide
Build-in editable report page
Physical specification
Dimension: 308mm(L)×310mm(W)×66mm(H)
Net Weight:4 Kg
Monitor:12inch LED
Resolution: 1024*768
Probe ports: 2-probe active ports
Harddisk:120G SSD
Imaging Modes
B,B&M,2B,4B, THI, PW, PDI ,Color
Imaging parameters
Imaging processing:Persistence, Gamma, chrome, gray map, L/R, U/D
Gary scale: 256
Dynamic range: 80-280dB
Gain control:total gain,8–slice TGC
Scanning depth:400mm max
Acoustic power:3 levels adjustable,real-time display MI/TI
Zoom:10*magnify
Cine-loop:200-2000 frames max,auto/manually play back
Measurement
General measurement:Depth, Distance, Trace Length, Ratio (D),
Area: Ellipse, Trace
Volume: 3-Distance, Ellipse, EDist
M mode: Distance, time, slope, Heart Rate
Clinical measurement package: Abdomen, OB, Gynecology, Cardiac, Urology, Small Parts
Body mark
More than 64 body marks for versatile application
With body position markers
Language supported
Chinese, English, Spanish, Russian, French, Portuguese, Germany
Transducer types:
Urology 3D Colour Doppler Ultrasound Machine Scan 12in LCD 120GB
Standard configuration features
Peripheral ports: VGA, 2 USB ports, HDMI port, DICOM port, LINE OUT port
Electrical Power supply: 100-240V~50/60Hz 100VA
Li-lion battery :3.2Ah
Video & PC printer (Optional)
Urology 3D Colour Doppler Ultrasound Machine Scan 12in LCD 120GB

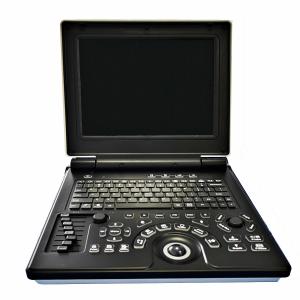

E20 Laptop Color Doppler Ultrasonic Diagnostic System

Laptop thin and light design;
12.1〞LCD Displayer;
Windows 7 operation system;
Standard key board and backlight key;
3200mAh recharge lithium battery.
Main Parameter Display modes: B, B/B,4B,B+M,CFM,B+CFM,PDI,B+PDI,PW;
Gray scale: 256 levels,
5 levels image optimization;
THI imaging technology;

Rich image processing technology, for instance frames average, view angle, edge

enhance, Gamma ,etc

CN,EN,RUS,POR,ESP,FR,DE 7 kinds languages;
Display penetration depth 1~400mm;
Dynamic range: 80~280dB adjustable;
Application mode OB,GYN, Small organ, Urology, Pediatric, Cardiac etc;
Preset the parameter depend on scanning organ;
IMT automatic measurement and display results;
15 kinds of pseudo color;
Support guide line of biopsy puncture;
Built-in 120G soild state drive ,make the storage safer and more reliable;
Support frequency conversion range: 2MHz~12MHz (depend on probe type);
Built-in editable report page ;
Gain control: 8 segments TGC and overall gain can be adjusted respectively;
Focus position: dynamic electron focusing.
Interface ports 2 activated probe connector
Interface Port: HDMI, VGA, DICOM, USB, Line Out.

Urology 3D Colour Doppler Ultrasound Machine Scan 12in LCD 120GB

Urology 3D Colour Doppler Ultrasound Machine Scan 12in LCD 120GB

Urology 3D Colour Doppler Ultrasound Machine Scan 12in LCD 120GB


Urology 3D Colour Doppler Ultrasound Machine Scan 12in LCD 120GB

We are an experienced Manufacturer in China, focusing on research development and production in black and white ultrasound and color doppler ultrasound scanner since 2005. We have been doing OEM and ODM more than hundreds of companies and factories over past 15 years.
Our products are affordable , reliable and competent. We sell over 10000 units to all over the world, and repair rate is less than 1%, all production process is strictly exectued with CE and ISO.

Urology 3D Colour Doppler Ultrasound Machine Scan 12in LCD 120GB

Urology 3D Colour Doppler Ultrasound Machine Scan 12in LCD 120GB

Urology 3D Colour Doppler Ultrasound Machine Scan 12in LCD 120GB

CE,ISO,Free sales certificate,EC declaration of conformity,MSDS,Registeration certificate for medical device,Manufacturing license,qualified industrial registerations,CO,CCPIT & ect .
